5225974-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

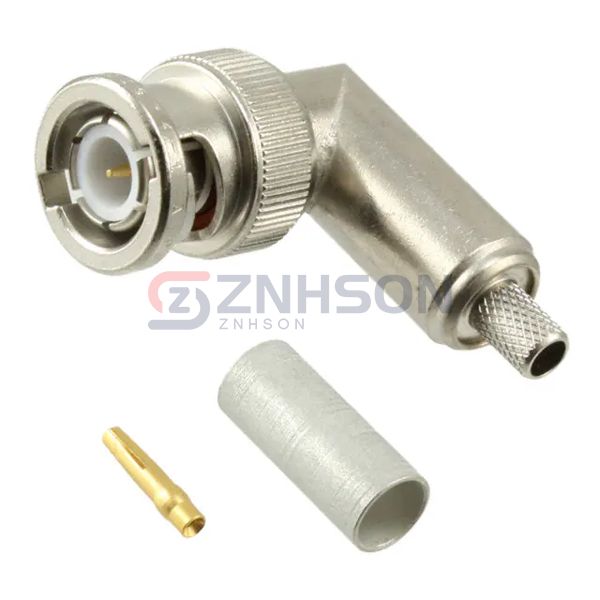

CONN BNC PLUG R/A 50 OHM CRIMP
$57.53
Available to order
Reference Price (USD)
1+
$50.21000
10+
$47.25800
25+
$45.78160
50+
$42.82780
100+
$40.46490
250+
$39.28340
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5225974-1 from TE Connectivity AMP Connectors represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 5225974-1 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Obsolete
- Connector Style: BNC
- Connector Type: Plug, Male Pin
- Contact Termination: Crimp
- Shield Termination: Crimp
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line), Right Angle
- Mounting Feature: -
- Cable Group: RG-58, 58A, 58B, 58C
- Fastening Type: Bayonet Lock
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Brass
