5228435-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

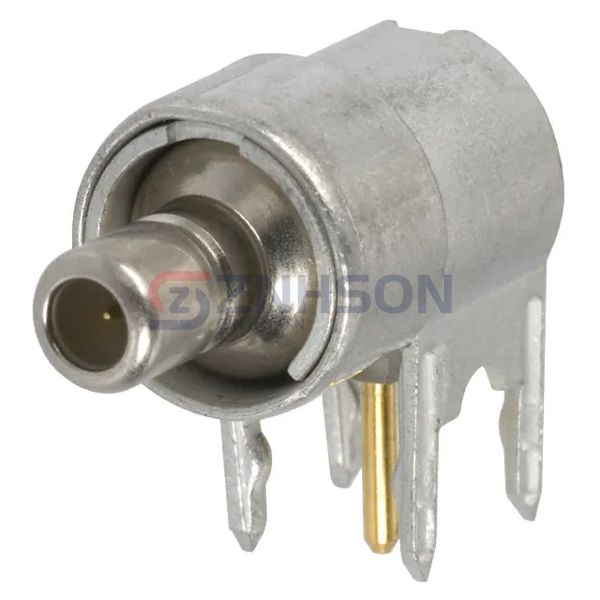

CONN SMB JACK R/A 50 OHM PCB
$21.02
Available to order
Reference Price (USD)
1+
$19.56000
10+
$18.16500
25+
$16.30160
50+
$15.83580
100+
$13.97280
250+
$13.04128
500+
$12.76182
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 5228435-1 from TE Connectivity AMP Connectors sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The 5228435-1 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Obsolete
- Connector Style: SMB
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Brass
