5233-0-00-15-00-00-08-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

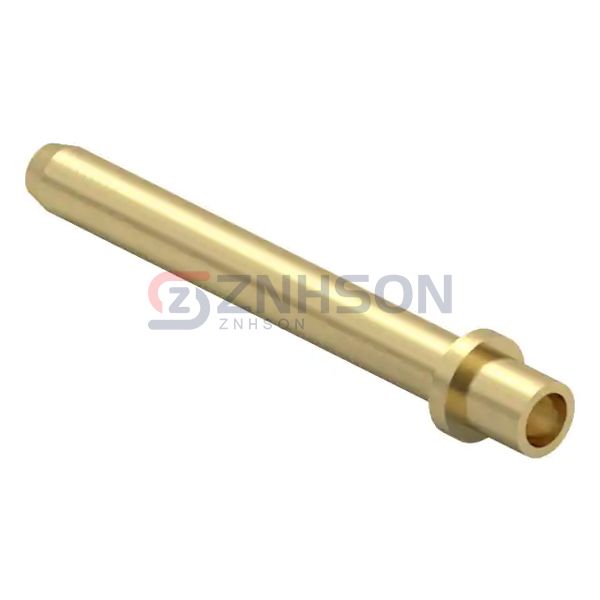

SOLDER TAIL SWAGE PIN
$0.76
Available to order
Reference Price (USD)
1+
$0.76000
500+
$0.7524
1000+
$0.7448
1500+
$0.7372
2000+
$0.7296
2500+
$0.722
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5233-0-00-15-00-00-08-0 from Mill-Max Manufacturing Corp. is a durable and efficient terminal connector designed for PC pin and single post connections. Its robust construction ensures reliable performance in various applications, including telecommunications, aerospace, and renewable energy. The 5233-0-00-15-00-00-08-0 is a testament to Mill-Max Manufacturing Corp.'s commitment to quality and innovation. Whether for prototyping or mass production, this connector delivers consistent results. Trust Mill-Max Manufacturing Corp. for all your interconnect needs.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.079" (2.01mm) Dia
- Pin Size - Below Flange: 0.089" (2.26mm) Dia
- Length - Above Flange: 0.650" (16.51mm)
- Length - Below Flange: 0.094" (2.39mm)
- Length - Overall: 0.769" (19.53mm)
- Flange Diameter: 0.124" (3.15mm)
- Mounting Hole Diameter: 0.093" (2.36mm)
- Mounting Type: Through Hole
- Termination: Swage
- Insulation: Non-Insulated
- Board Thickness: 0.062" (1.58mm)
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
