54025-08-0100-01
CNC Tech
CNC Tech

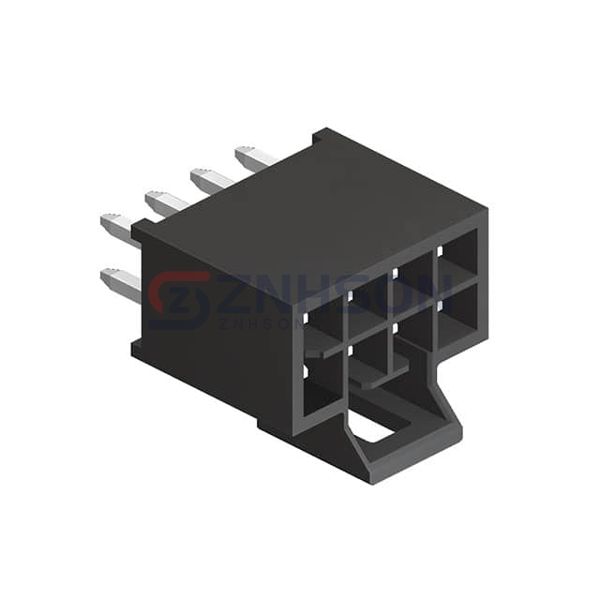

WIRE-TO BOARD WAFER, 2.5MM, 8 CO
$0.96
Available to order
Reference Price (USD)
1+
$0.96000
500+
$0.9504
1000+
$0.9408
1500+
$0.9312
2000+
$0.9216
2500+
$0.912
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 54025-08-0100-01 rectangular connector header from CNC Tech for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. CNC Tech is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.098" (2.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.357" (9.07mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 6.5A (AC/DC)
- Voltage Rating: 250VAC/DC
