561V504EFT
Winchester Interconnect
Winchester Interconnect

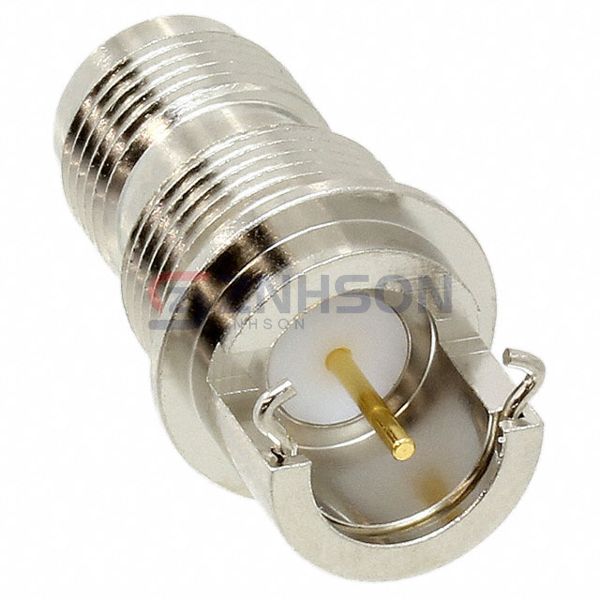

CONN TNC JACK STR 50OHM EDGE MNT
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 561V504EFT from Winchester Interconnect represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 561V504EFT variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: TNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Board Edge, End Launch; Panel Mount
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 18 GHz
- Number of Ports: 1
- Features: Flange
- Housing Color: Silver
- Ingress Protection: Weatherproof
- Center Contact Material: Phosphor Bronze
