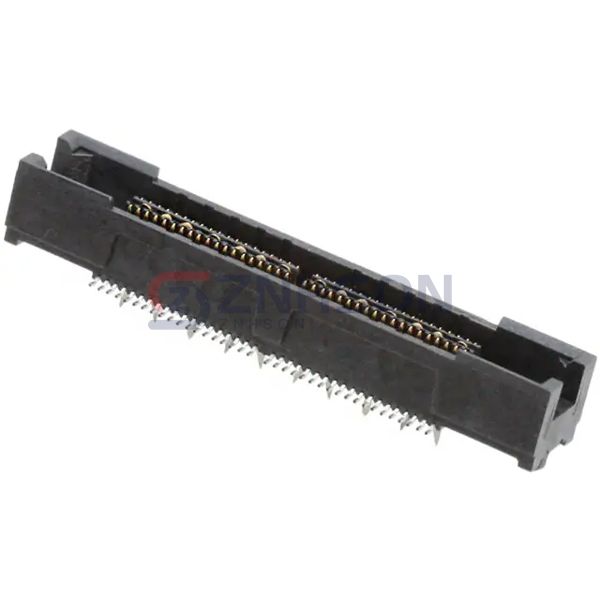

5767054-2

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN RCPT 76P SMD PALLAD-NICKEL

Datasheet:

5767054-2 Datasheet

$36.80

Available to order

Reference Price (USD)

$27.85000

14+

$25.13857

28+

$24.08536

56+

$22.57982

112+

$21.82723

252+

$20.62294

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Optimize your PCB layouts with the 5767054-2 rectangular connector by TE Connectivity AMP Connectors. This edge-type mezzanine connector is designed for high-density board-to-board applications, offering superior signal integrity and space efficiency. Its robust construction ensures reliable performance in harsh conditions, from industrial machinery to outdoor telecommunications equipment. Typical applications include modular electronics, such as blade servers and portable medical devices. By integrating 5767054-2 into your designs, you benefit from a connector that combines innovation, durability, and ease of use.

Specifications

Product Status: Active
Connector Type: Receptacle, Center Strip Contacts
Number of Positions: 76
Pitch: 0.025" (0.64mm)
Number of Rows: 2
Mounting Type: Surface Mount
Features: Board Guide, Ground Bus (Plane)
Contact Finish: Palladium-Nickel
Contact Finish Thickness: 5.00µin (0.127µm)
Mated Stacking Heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
Height Above Board: 0.236" (6.00mm)
