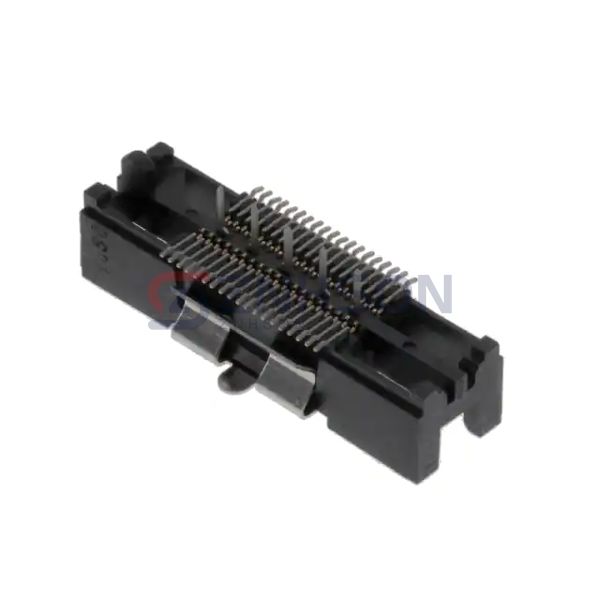

5767115-1

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN RCPT 38POS SMD GOLD

Datasheet:

5767115-1 Datasheet

$21.08

Available to order

Reference Price (USD)

252+

$12.07337

504+

$11.81466

756+

$11.46971

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 5767115-1 by TE Connectivity AMP Connectors is a cutting-edge rectangular connector designed for array and edge-type board-to-board applications. Its mezzanine configuration supports high-speed signal transmission and power delivery in compact spaces. These connectors are widely used in consumer electronics, automotive systems, and industrial equipment. For example, they are essential in smartphones, electric vehicle control units, and CNC machines. With 5767115-1, you get a connector that combines advanced technology with unmatched durability for your most demanding projects.

Specifications

Product Status: Active
Connector Type: Receptacle, Center Strip Contacts
Number of Positions: 38
Pitch: 0.025" (0.64mm)
Number of Rows: 2
Mounting Type: Surface Mount
Features: Board Guide, Ground Bus (Plane)
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Mated Stacking Heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
Height Above Board: 0.236" (6.00mm)
