58102-G61-20LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

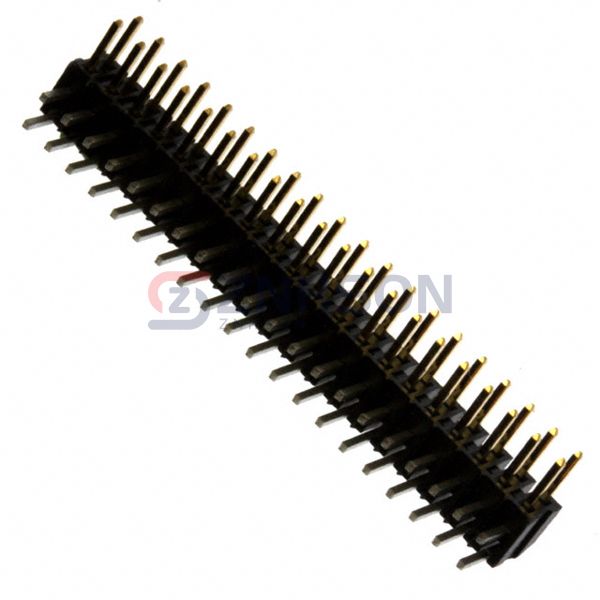

CONN HEADER R/A 40POS 2MM
$2.97
Available to order
Reference Price (USD)
1+
$2.54000
10+
$2.30200
100+
$1.97320
500+
$1.64430
1,000+
$1.40940
5,000+
$1.24967
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 58102-G61-20LF rectangular connector header from Amphenol ICC (FCI). These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 58102-G61-20LF meets the highest industry standards. Amphenol ICC (FCI) provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.098" (2.50mm)
- Overall Contact Length: -
- Insulation Height: 0.165" (4.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A (AC/DC)
- Voltage Rating: 200V (AC/DC)
