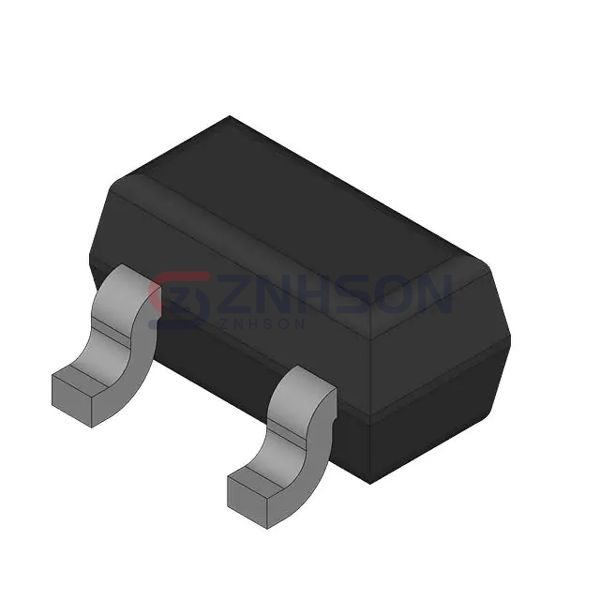

5LP01S-TL-E
onsemi
onsemi
5LP01S - P-CHANNEL SMALL SIGNAL
$0.08
Available to order
Reference Price (USD)
1+
$0.08000
500+
$0.0792
1000+
$0.0784
1500+
$0.0776
2000+
$0.0768
2500+
$0.076
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5LP01S-TL-E from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's 5LP01S-TL-E for their critical applications.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 50 V
- Current - Continuous Drain (Id) @ 25°C: 70mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4V
- Rds On (Max) @ Id, Vgs: 23Ohm @ 40mA, 4V
- Vgs(th) (Max) @ Id: -
- Gate Charge (Qg) (Max) @ Vgs: 1.4 nC @ 10 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 7400 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 150mW (Ta)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SMCP
- Package / Case: SC-75, SOT-416
