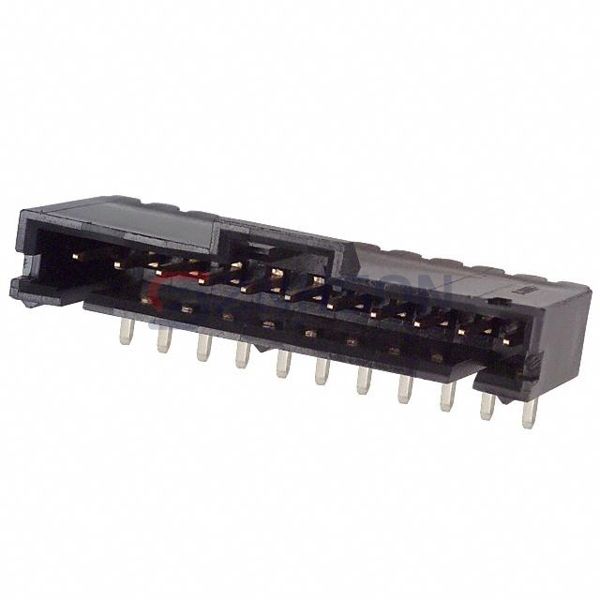

6-103635-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 11POS 2.54MM
$2.68
Available to order
Reference Price (USD)
1+
$2.34000
17+
$2.12471
102+
$1.82108
510+
$1.51761
1,003+
$1.30080
5,015+
$1.15338
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 6-103635-0 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 11
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.200" (5.08mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
5164713-4
Samtec Inc.
TSM-104-02-F-DV-P
JST Sales America Inc.
B7P-VH(LF)(SN)
Samtec Inc.
TSW-103-24-G-D
TE Connectivity AMP Connectors
147323-8
Molex
1721730002
Sullins Connector Solutions
GEC06SABN-M30
TE Connectivity AMP Connectors

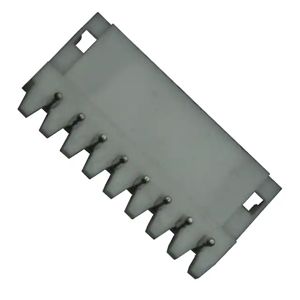

292253-8
Adam Tech

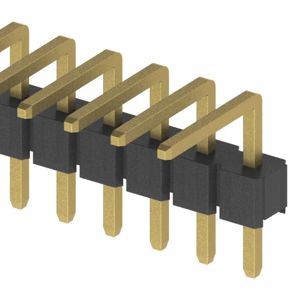

PH1RA-15-UA
