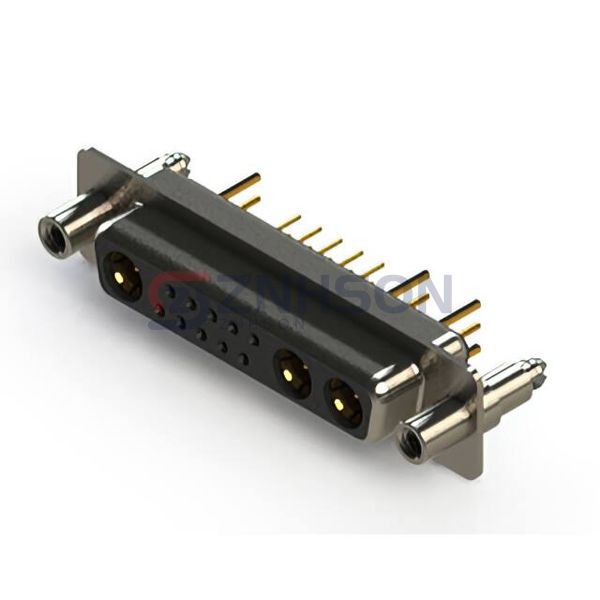

628-13W3224-7N6
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 13POS VERT SLDR
$10.62
Available to order
Reference Price (USD)
1+
$10.62080
500+
$10.514592
1000+
$10.408384
1500+
$10.302176
2000+
$10.195968
2500+
$10.08976
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 628-13W3224-7N6 from EDAC Inc. represents the next evolution in D-Sub connector technology within our Connectors division. These high-reliability interconnects feature glass-filled thermoplastic shells for lightweight applications and include EMI/RFI filtering options. With operating temperatures from -55 C to +125 C, the 628-13W3224-7N6 series is perfect for oilfield instrumentation, marine navigation systems, and outdoor telecom infrastructure. The unique dual-lock design ensures positive mating retention even under extreme shock conditions, making these connectors preferred for defense applications and mobile emergency response equipment.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 13 (10 + 3 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 13C3, 13W3
- Contact Type: Coax and Signal
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: -
- Features: Board Lock, Shielded
