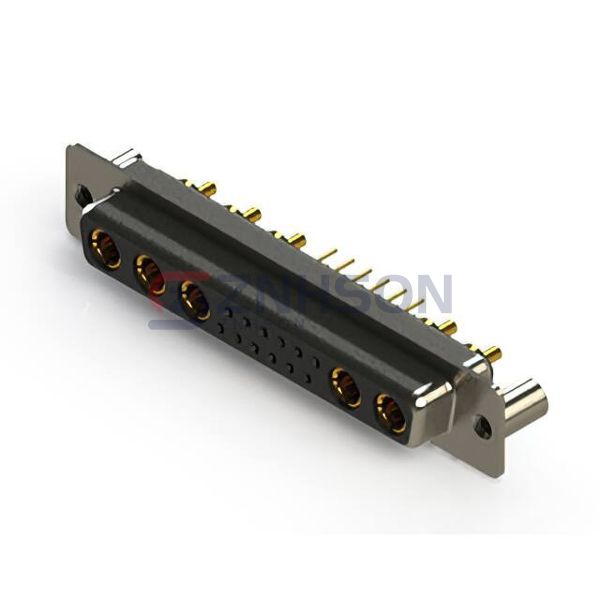

628-17W5624-1T3
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 17POS VERT SLDR
$28.09
Available to order
Reference Price (USD)
1+
$28.09010
500+
$27.809199
1000+
$27.528298
1500+
$27.247397
2000+
$26.966496
2500+
$26.685595
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 628-17W5624-1T3 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 628-17W5624-1T3 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 17 (12 + 5 Power)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 4 (DC, C) - 17W5
- Contact Type: Signal and Power
- Flange Feature: Board Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 10A
- Backset Spacing: -
- Features: Shielded
