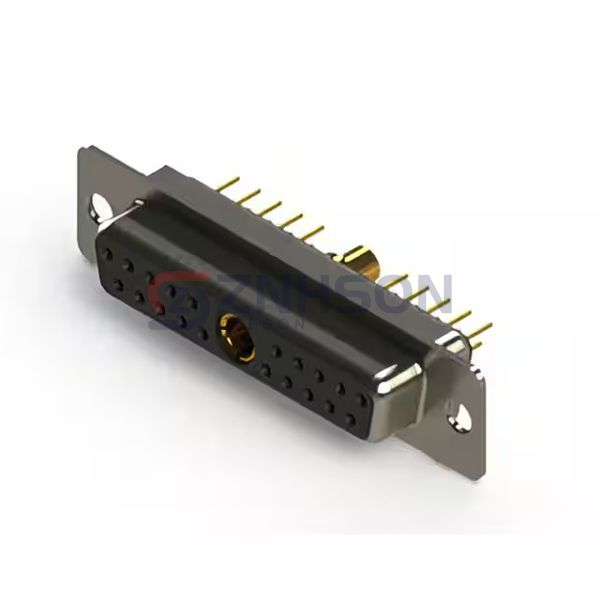

628-21W1224-4T1
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 21POS VERT SLDR
$7.50
Available to order
Reference Price (USD)
1+
$7.49800
500+
$7.42302
1000+
$7.34804
1500+
$7.27306
2000+
$7.19808
2500+
$7.1231
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 628-21W1224-4T1 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 628-21W1224-4T1 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 21 (20 + 1 Power)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 21W1
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: -
- Features: Shielded
Related Products
NorComp Inc.
CDFV9W4113L451
EDAC Inc.
628-11W1624-7TE
EDAC Inc.
627-3W3-624-5NC
TE Connectivity AMP Connectors
5205734-1
EDAC Inc.
630W7W2-340-4NC
EDAC Inc.
627-M37-320-GN6
EDAC Inc.
628-5W5-624-7NA
Positronic
DD62M200V5Z
EDAC Inc.

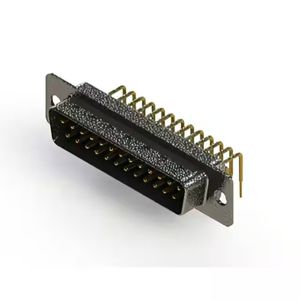

629-M25-340-BT1
