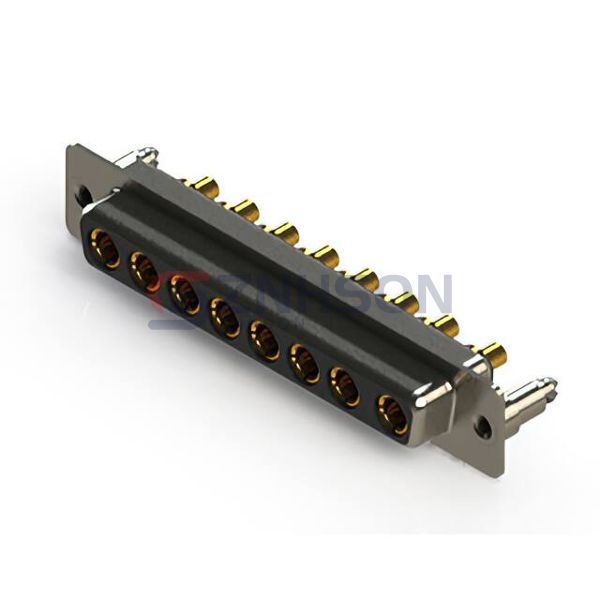

628-8W8-224-2TD
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 8POS VERT SLDR
$12.69
Available to order
Reference Price (USD)
1+
$12.69140
500+
$12.564486
1000+
$12.437572
1500+
$12.310658
2000+
$12.183744
2500+
$12.05683
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 628-8W8-224-2TD D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 628-8W8-224-2TD differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 8 (Power)
- Number of Rows: 1
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 4 (DC, C) - 8W8
- Contact Type: Signal and Power
- Flange Feature: Board Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 20A
- Backset Spacing: -
- Features: Board Lock, Shielded
Related Products
EDAC Inc.
627-13W3222-1T1
Positronic
DD26S32S60TS
Kycon, Inc.
K85X-BD-25S-BRJ
EDAC Inc.
628-M09-323-GT1
EDAC Inc.
628-3WK3224-5N5
EDAC Inc.
661-009-264-040
EDAC Inc.
630-24W7640-4T6
EDAC Inc.
627-M50-623-GT4
EDAC Inc.

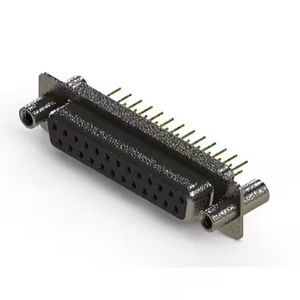

628-M25-621-BT4
