628W13W3624-3NA
EDAC Inc.
EDAC Inc.

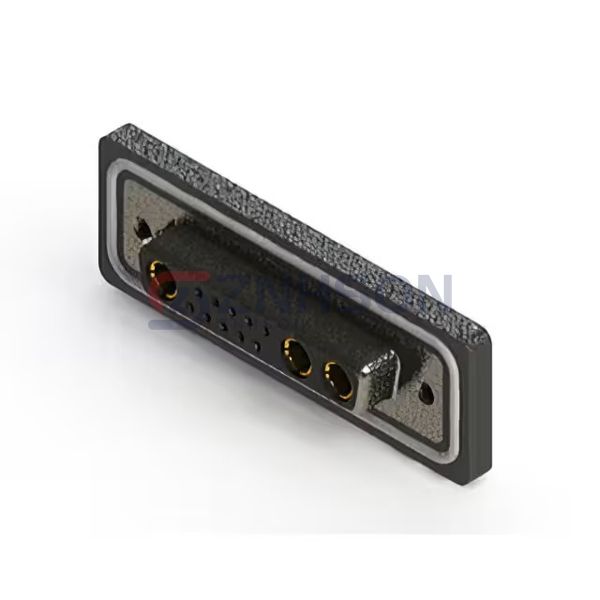

CONN D-SUB RCPT 13P PNL MNT SLDR
$25.30
Available to order
Reference Price (USD)
1+
$25.30395
500+
$25.0509105
1000+
$24.797871
1500+
$24.5448315
2000+
$24.291792
2500+
$24.0387525
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 628W13W3624-3NA redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 628W13W3624-3NA is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 13 (10 + 3 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 13C3, 13W3
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: -
- Features: Shielded
