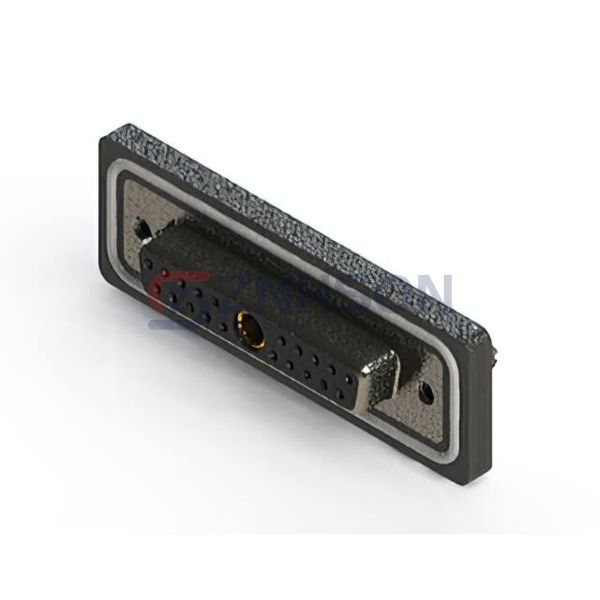

628W21W1124-3N5
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 21P PNL MNT SLDR
$15.95
Available to order
Reference Price (USD)
1+
$15.95298
500+
$15.7934502
1000+
$15.6339204
1500+
$15.4743906
2000+
$15.3148608
2500+
$15.155331
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 628W21W1124-3N5 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 628W21W1124-3N5 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 21 (20 + 1 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 21W1
- Contact Type: Signal and Power
- Flange Feature: Board Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 5.00µin (0.127µm)
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: -
- Features: Board Lock, Shielded
Related Products
EDAC Inc.
628-3WK3222-5N2
EDAC Inc.
630-21W4240-1N3
EDAC Inc.
629-2WK2650-2T4
EDAC Inc.
630-25W3640-2NB
EDAC Inc.
629-13W6640-5T5
EDAC Inc.
629-3W3-250-1N6
EDAC Inc.

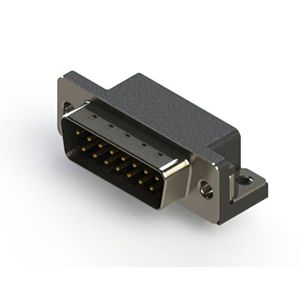

621-015-668-511
EDAC Inc.

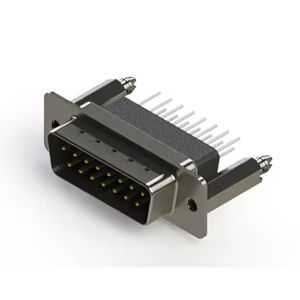

627-015-271-276
PEI-Genesis

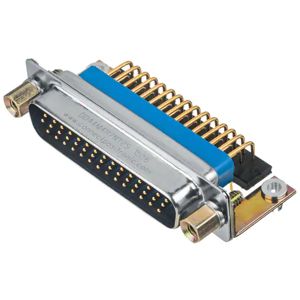

DD15S3200V30
