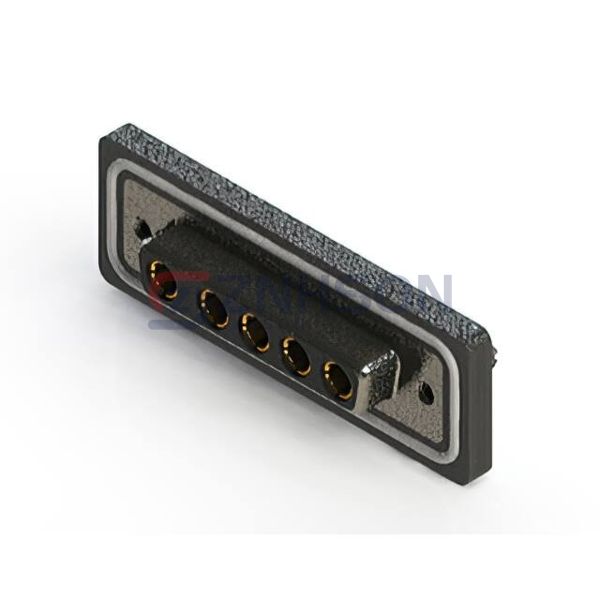

628W5W5-124-3N5
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 5P PNL MNT SLDR
$15.79
Available to order
Reference Price (USD)
1+
$15.78830
500+
$15.630417
1000+
$15.472534
1500+
$15.314651
2000+
$15.156768
2500+
$14.998885
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 628W5W5-124-3N5 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 628W5W5-124-3N5 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 5 (Power)
- Number of Rows: 1
- Mounting Type: Panel Mount
- Shell Size, Connector Layout: 3 (DB, B) - 5W5
- Contact Type: Power
- Flange Feature: Board Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 5.00µin (0.127µm)
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 30A
- Backset Spacing: -
- Features: Board Lock, Shielded
Related Products
EDAC Inc.
628W9W4-224-4N5
Molex
1731070099
EDAC Inc.
628-M50-323-LN4
EDAC Inc.
628-13W6624-7T6
EDAC Inc.
627-M25-320-LN3
EDAC Inc.
629-27W2650-4N2

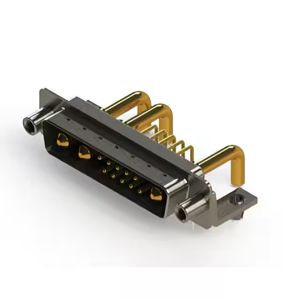

EDAC Inc.
629-13W3250-3ND

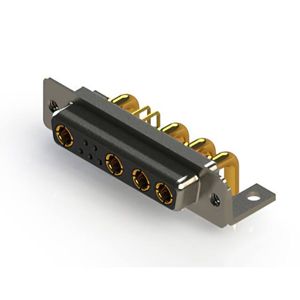

EDAC Inc.
630-9W4-240-3T4

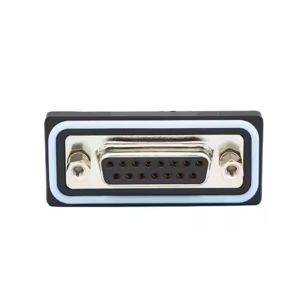

NorComp Inc.
