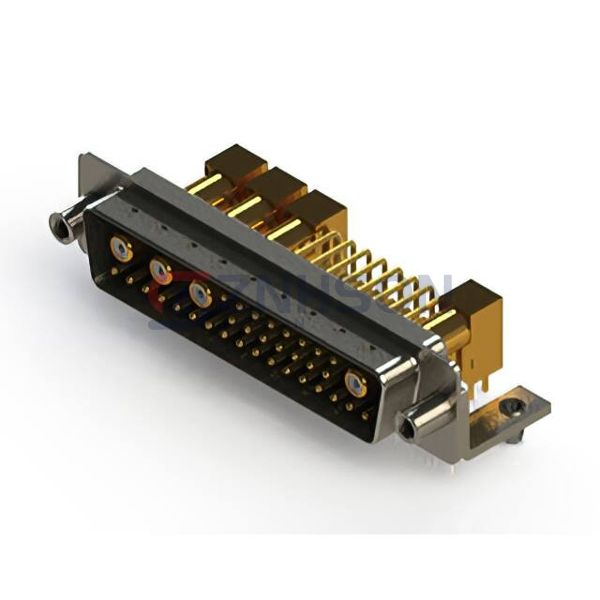

629-36W4640-5N5
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 36POS R/A SLDR
$46.58
Available to order
Reference Price (USD)
1+
$46.57800
500+
$46.11222
1000+
$45.64644
1500+
$45.18066
2000+
$44.71488
2500+
$44.2491
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 629-36W4640-5N5 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 629-36W4640-5N5 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 36 (32 + 4 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 5 (DD, D) - 36W4
- Contact Type: Coax and Signal
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets
Related Products
EDAC Inc.
630-21W1250-3N2
PEI-Genesis
DD78S10LVL0/AA
EDAC Inc.
627-2W2-624-3N6
EDAC Inc.
630-47W1650-4T3
EDAC Inc.
630-43W2640-2T4
PEI-Genesis
DD15S3S0V3X
EDAC Inc.
629-17W5650-3TB
EDAC Inc.
627-5W1-224-2NA
EDAC Inc.

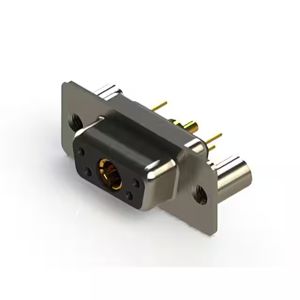

628-5W1-624-1TB
