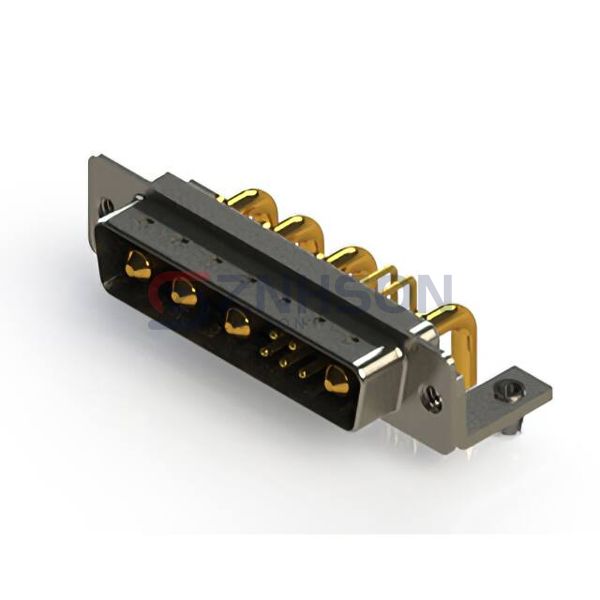

629-9W4-240-2TB
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 9POS R/A SLDR
$7.31
Available to order
Reference Price (USD)
1+
$7.31341
500+
$7.2402759
1000+
$7.1671418
1500+
$7.0940077
2000+
$7.0208736
2500+
$6.9477395
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 629-9W4-240-2TB redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 629-9W4-240-2TB is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 9 (5 + 4 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B) - 9W4
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets
