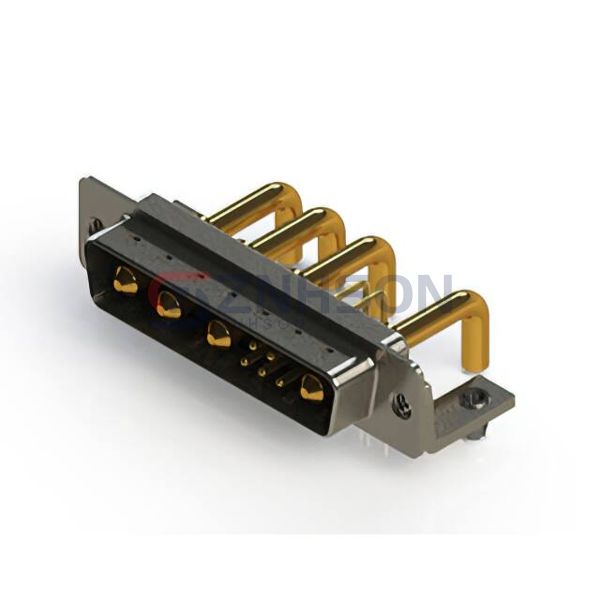

629-9W4-650-3NB
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 9POS R/A SLDR
$19.93
Available to order
Reference Price (USD)
1+
$19.92528
500+
$19.7260272
1000+
$19.5267744
1500+
$19.3275216
2000+
$19.1282688
2500+
$18.929016
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 629-9W4-650-3NB redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 629-9W4-650-3NB is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 9 (5 + 4 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B) - 9W4
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets
Related Products
EDAC Inc.
630-M37-340-GN5
NorComp Inc.
172-025-142R031
EDAC Inc.
628-037-621-059
EDAC Inc.
630-2W2-250-2T1
EDAC Inc.
629-36W4650-4TE
EDAC Inc.
628-M50-623-WT1
EDAC Inc.

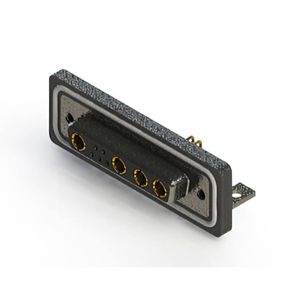

630W9W4-240-1NC
EDAC Inc.
630-17W5240-2T6
EDAC Inc.

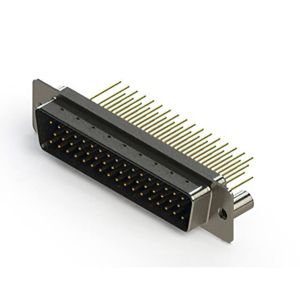

627-M50-223-LN3
