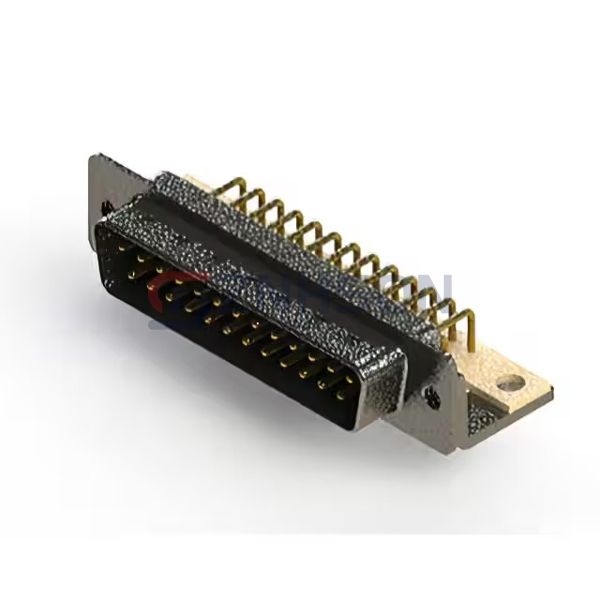

629-M25-340-BN4
EDAC Inc.
EDAC Inc.
629M SERIES RIGHT ANGLE D-SUB PL
$10.40
Available to order
Reference Price (USD)
1+
$10.39973
500+
$10.2957327
1000+
$10.1917354
1500+
$10.0877381
2000+
$9.9837408
2500+
$9.8797435
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 629-M25-340-BN4 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 629-M25-340-BN4 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 25
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B)
- Contact Type: Signal
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 15.0µin (0.38µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A per Contact
- Backset Spacing: 0.370" (9.40mm)
- Features: Grounding Indents, Mounting Brackets, Shielded
