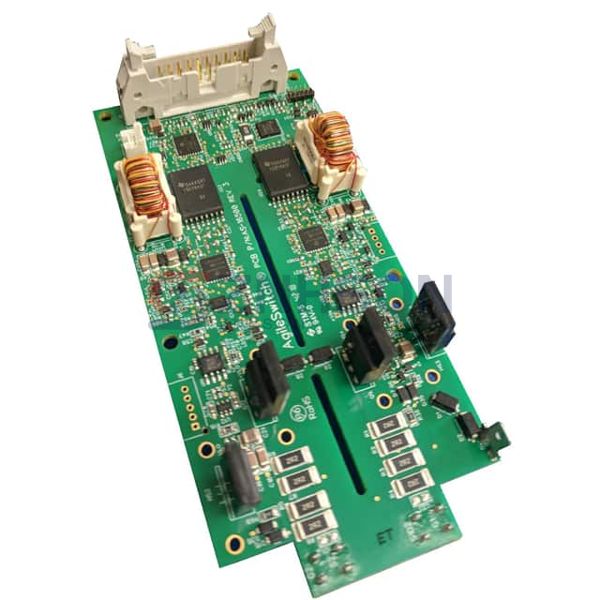

62EM1-00001
Microchip Technology
Microchip Technology
SILICON CARBIDE GATE DRIVER
$294.68
Available to order
Reference Price (USD)
1+
$294.68000
500+
$291.7332
1000+
$288.7864
1500+
$285.8396
2000+
$282.8928
2500+
$279.946
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's 62EM1-00001 represents the cutting edge of PMIC - Gate Driver technology, engineered to deliver unmatched switching performance for power electronics. This IC classification specializes in synchronous rectification and half-bridge configurations with integrated bootstrap diodes. Notable characteristics comprise UVLO protection, programmable turn-on/off thresholds, and 4A peak output current capacity. Primary applications span data center power supplies, welding equipment, and DC-DC converters. A concrete example: the 62EM1-00001 enables 98% efficiency in 1kW telecom power modules while withstanding 100V/ns common-mode transients. The device's reinforced isolation meets IEC 61800-5-1 standards, particularly valuable for medical imaging systems and railway traction converters.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Single
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 14V ~ 16V
- Logic Voltage - VIL, VIH: 4V, 1.25V, 10V, 3.5V
- Current - Peak Output (Source, Sink): 20A, 20A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 80ns, 90ns
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
