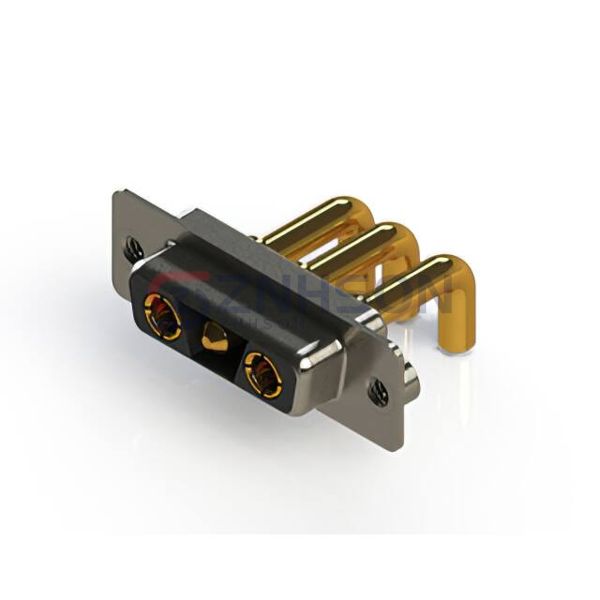

630-3WK3650-4N2
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 3POS R/A SLDR
$12.82
Available to order
Reference Price (USD)
1+
$12.82496
500+
$12.6967104
1000+
$12.5684608
1500+
$12.4402112
2000+
$12.3119616
2500+
$12.183712
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 630-3WK3650-4N2 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 630-3WK3650-4N2 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets and Male Pins
- Number of Positions: 3 (Power)
- Number of Rows: 1
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) - 3WK3
- Contact Type: Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 40A
- Backset Spacing: 0.520" (13.20mm)
- Features: -
Related Products
EDAC Inc.
638-062-632-267
EDAC Inc.
628-43W2624-7TD
EDAC Inc.
633-044-263-050
PEI-Genesis
DD26S10W00/AA
EDAC Inc.
663-025-664-005
EDAC Inc.
627-M50-223-WT2
EDAC Inc.
661-015-364-05C
EDAC Inc.
628W2WK2124-1ND
EDAC Inc.

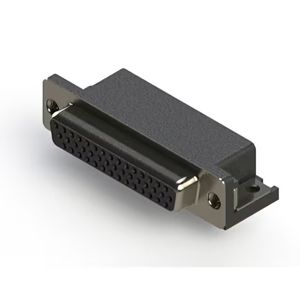

634-044-363-515
