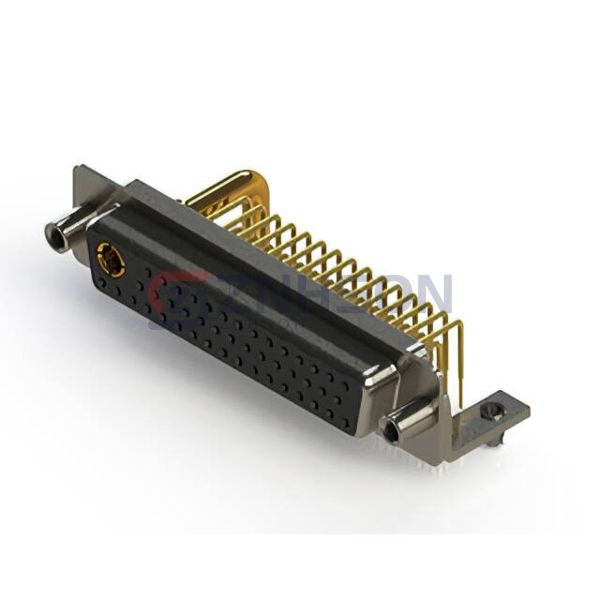

630-47W1650-4ND
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 47POS R/A SLDR
$36.85
Available to order
Reference Price (USD)
1+
$36.84672
500+
$36.4782528
1000+
$36.1097856
1500+
$35.7413184
2000+
$35.3728512
2500+
$35.004384
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 630-47W1650-4ND redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 630-47W1650-4ND is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 47 (46 + 1 Power)
- Number of Rows: 3
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 5 (DD, D) - 47W1
- Contact Type: Signal and Power
- Flange Feature: Mating Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Mounting Brackets
