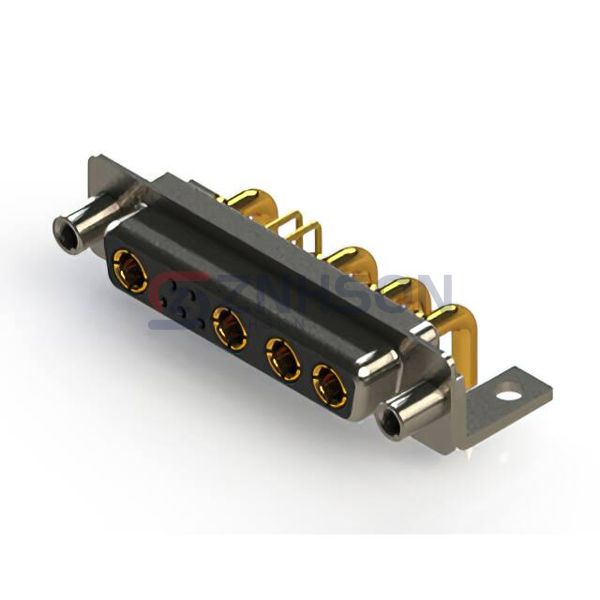

630-9W4-640-2NE
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 9POS R/A SLDR
$22.46
Available to order
Reference Price (USD)
1+
$22.45500
500+
$22.23045
1000+
$22.0059
1500+
$21.78135
2000+
$21.5568
2500+
$21.33225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the EDAC Inc. 630-9W4-640-2NE D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 630-9W4-640-2NE stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 9 (5 + 4 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B) - 9W4
- Contact Type: Signal and Power
- Flange Feature: Mating Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: 0.370" (9.40mm)
- Features: Mounting Brackets
