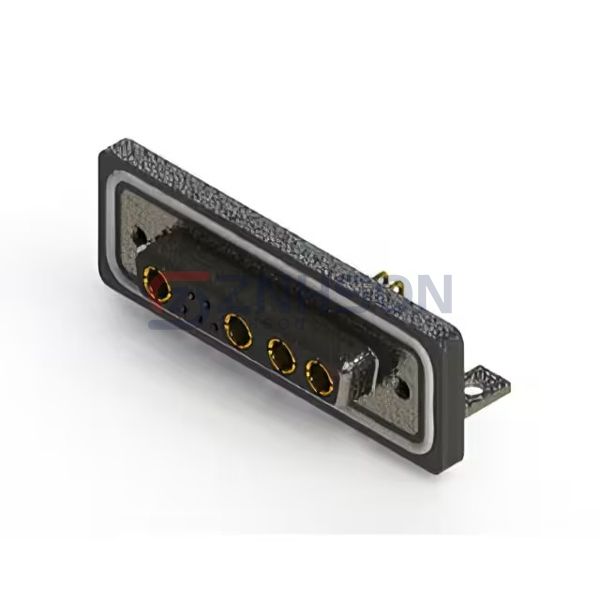

630W9W4-240-2N4
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 9POS R/A SLDR
$17.60
Available to order
Reference Price (USD)
1+
$17.60010
500+
$17.424099
1000+
$17.248098
1500+
$17.072097
2000+
$16.896096
2500+
$16.720095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc. presents the 630W9W4-240-2N4 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 630W9W4-240-2N4 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 9 (5 + 4 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B) - 9W4
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: -
- Features: Mounting Brackets, Shielded
Related Products
EDAC Inc.
627-5W1-222-2NA
EDAC Inc.
663-037-364-031
EDAC Inc.
627-050-222-061
Encitech Connectors AB
6355-0030-13
EDAC Inc.
629-2WK2640-1TB
EDAC Inc.
628-27W2624-1TB
EDAC Inc.
628-015-371-077
EDAC Inc.
663-037-364-004
Cinch Connectivity Solutions

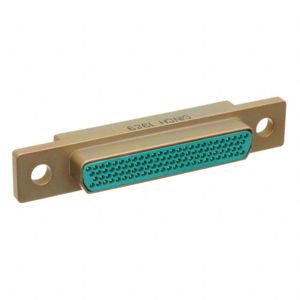

DCCM100PSB
