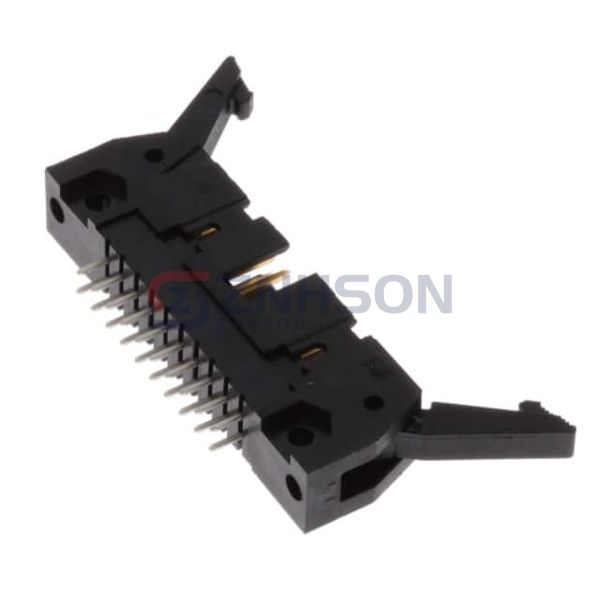

6364106-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 20POS 2.54MM
$4.06
Available to order
Reference Price (USD)
1+
$3.08000
10+
$2.96300
25+
$2.73560
50+
$2.62160
100+
$2.50750
250+
$2.22256
500+
$2.16556
1,000+
$1.88062
2,500+
$1.76664
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 6364106-4 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 6364106-4 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: 0.651" (16.53mm)
- Insulation Height: 0.549" (13.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: -
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC
