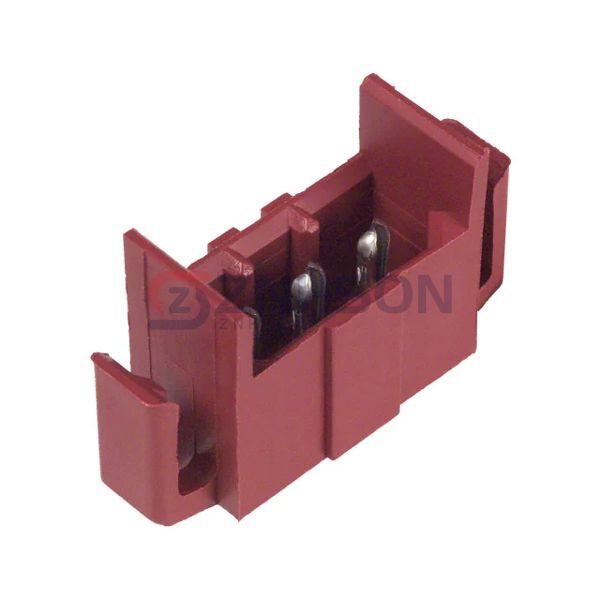

640498-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 3POS 4.2MM
$2.56
Available to order
Reference Price (USD)
1+
$1.86000
10+
$1.69000
100+
$1.44830
500+
$1.20688
1,000+
$1.03448
5,000+
$0.91723
10,000+
$0.89655
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 640498-1 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.220" (5.59mm)
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 0.531" (13.50mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black, Red
- Current Rating (Amps): 6A
- Voltage Rating: 250VAC
