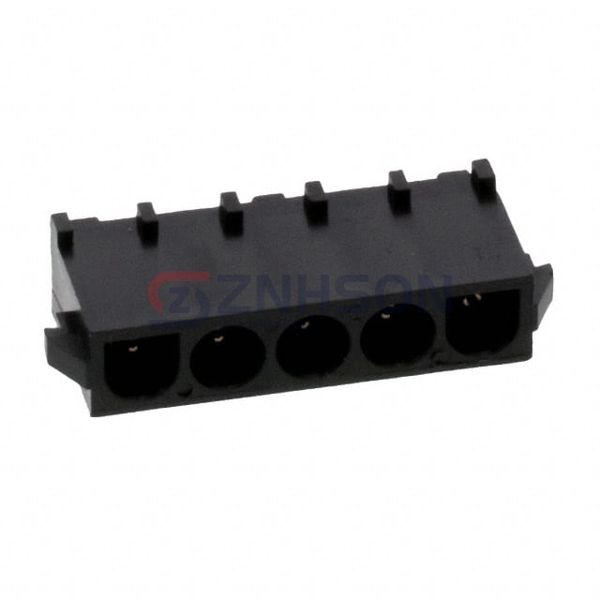

643406-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 5POS 6.35MM
$1.24
Available to order
Reference Price (USD)
1+
$0.95000
10+
$0.84000
100+
$0.72440
500+
$0.59266
1,000+
$0.52680
5,000+
$0.46095
10,000+
$0.43790
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 643406-3 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.250" (6.35mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.155" (3.94mm)
- Overall Contact Length: -
- Insulation Height: 0.550" (13.97mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 12A
- Voltage Rating: 600VAC
