6473418-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 26POS 3MM
$21.61
Available to order
Reference Price (USD)
1+
$14.59000
17+
$13.26000
102+
$11.27098
510+
$9.61351
1,003+
$8.81790
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

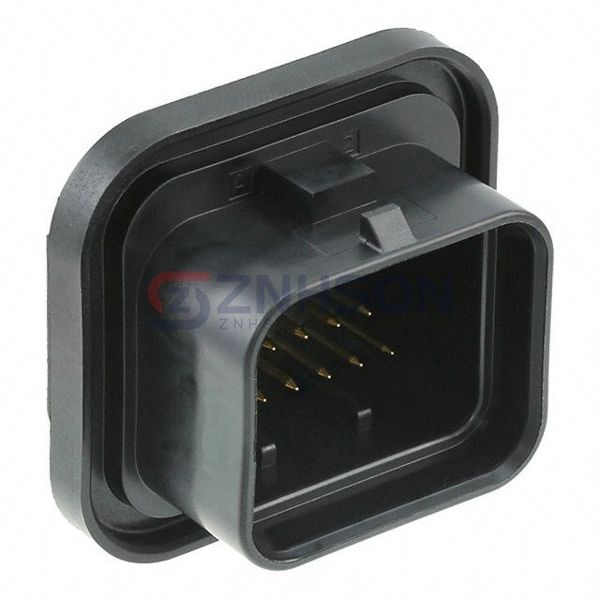

The 6473418-1 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 6473418-1 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 26
- Number of Rows: 4
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.972" (24.70mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester
- Features: Sealed
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: -
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250V
