647676-9
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

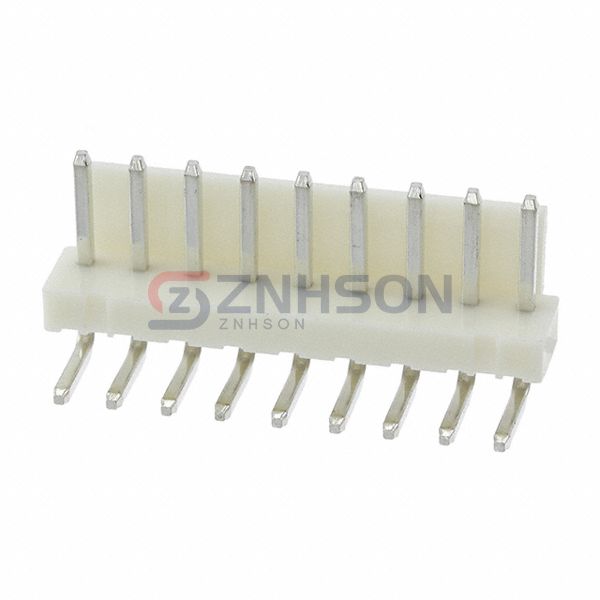

CONN HEADER R/A 9POS 3.96MM
$1.16
Available to order
Reference Price (USD)
1+
$0.92000
10+
$0.81700
100+
$0.71310
500+
$0.59426
1,000+
$0.53484
5,000+
$0.47541
10,000+
$0.45461
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 647676-9 rectangular connector header from TE Connectivity AMP Connectors. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 647676-9 is perfect for automotive, industrial, and consumer electronics. TE Connectivity AMP Connectors ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.338" (8.59mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.339" (8.61mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 80.0µin (2.03µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 7.5A
- Voltage Rating: 250VAC
