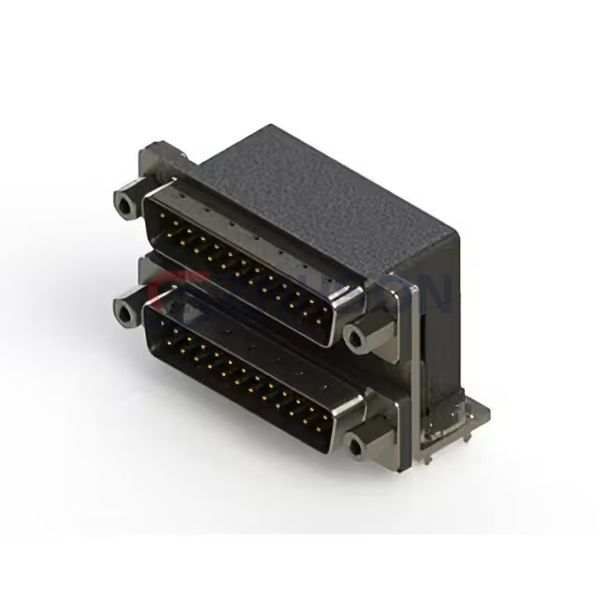

661-025-664-036
EDAC Inc.
EDAC Inc.
661 SERIES RIGHT ANGLE DUAL D-SU
$12.77
Available to order
Reference Price (USD)
1+
$12.77140
500+
$12.643686
1000+
$12.515972
1500+
$12.388258
2000+
$12.260544
2500+
$12.13283
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 661-025-664-036 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 661-025-664-036 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub - Stacked
- Connector Type: Plug, Male Pins
- Number of Positions: 25, 25
- Number of Rows: 2, 2
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.318" (8.08mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
