662020231822
Würth Elektronik
Würth Elektronik

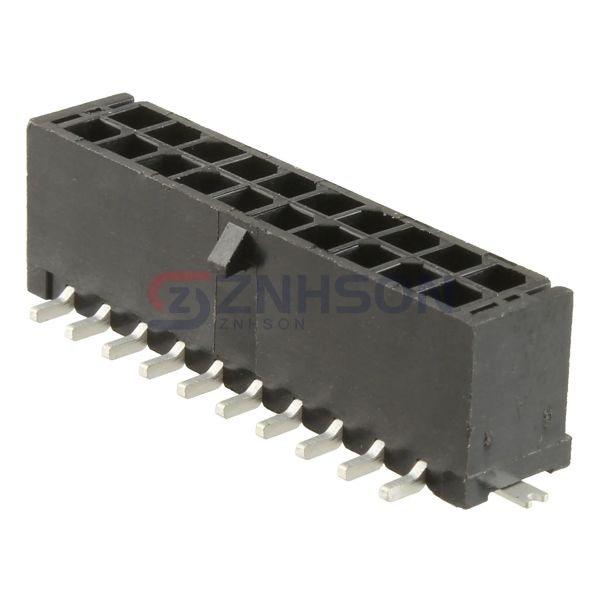

CONN HEADER SMD 20POS 3MM
$2.48
Available to order
Reference Price (USD)
1+
$2.48000
500+
$2.4552
1000+
$2.4304
1500+
$2.4056
2000+
$2.3808
2500+
$2.356
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 662020231822 by Würth Elektronik is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 662020231822 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Würth Elektronik ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 5A
- Voltage Rating: 250V
