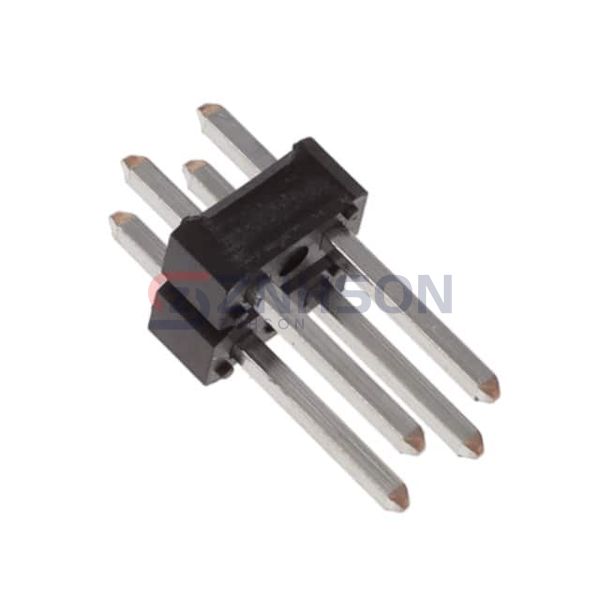

68692-404H
Amphenol ICC (FCI)
Amphenol ICC (FCI)
BERGSTIK II
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 68692-404H by Amphenol ICC (FCI) is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 68692-404H supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Amphenol ICC (FCI) ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: 0.430" (10.92mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: -
- Features: -
- Operating Temperature: -65°C ~ 130°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
