690357281676
Würth Elektronik
Würth Elektronik

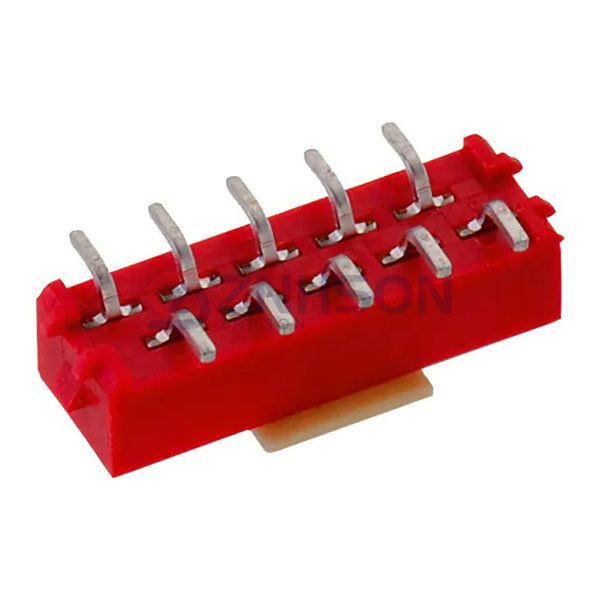

WR-MM MALE SMT CONNECTOR
$2.16
Available to order
Reference Price (USD)
1+
$2.16000
500+
$2.1384
1000+
$2.1168
1500+
$2.0952
2000+
$2.0736
2500+
$2.052
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 690357281676 rectangular connector header from Würth Elektronik, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 690357281676 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Würth Elektronik guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.059" (1.50mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.142" (3.60mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Pick and Place
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Red
- Current Rating (Amps): 1.5A per Contact
- Voltage Rating: 100VAC
