69167-112HLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 12POS 2.54MM
$1.95
Available to order
Reference Price (USD)
1+
$1.44000
10+
$1.30900
100+
$1.12220
500+
$0.93520
1,000+
$0.80160
5,000+
$0.71075
10,000+
$0.69472
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

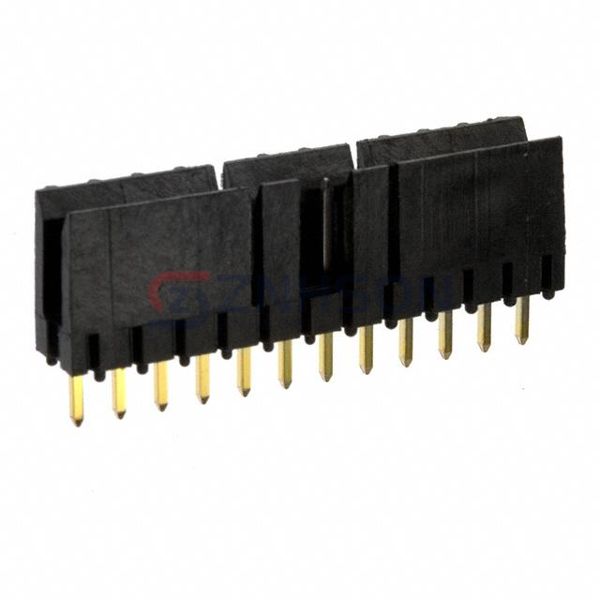

The 69167-112HLF by Amphenol ICC (FCI) is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Amphenol ICC (FCI) delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.465" (11.81mm)
- Insulation Height: 0.386" (9.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: -
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
