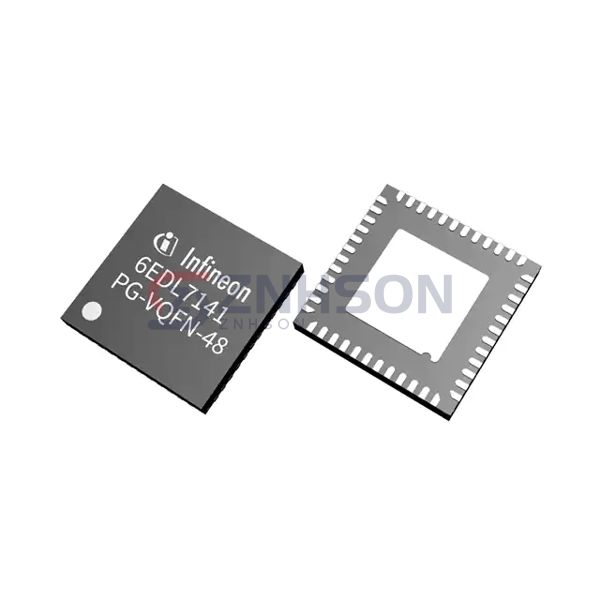

6EDL7141XUMA1
Infineon Technologies
Infineon Technologies
3-PHASE SMART GATE DRIVE CONTROL
$6.84
Available to order
Reference Price (USD)
1+
$6.84000
500+
$6.7716
1000+
$6.7032
1500+
$6.6348
2000+
$6.5664
2500+
$6.498
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 6EDL7141XUMA1 PMIC - Gate Driver by Infineon Technologies sets new benchmarks for intelligent power device control. As part of the ICs family, this solution incorporates digital input interfaces (PWM, SPI) alongside analog fault monitoring pins. Its standout attributes are: 1) 12ns typical propagation delay matching, 2) -40 C to +150 C junction temperature range, and 3) configurable soft-turnoff during overcurrent events. Dominant market applications encompass 5G base station PAs, MRI gradient amplifiers, and hydrogen fuel cell converters. A case in point: Siemens' latest wind turbine converters leverage 6EDL7141XUMA1-equivalent drivers to achieve 99.2% availability in offshore conditions, thanks to conformal coating against salt spray corrosion.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: 3-Phase
- Number of Drivers: 3
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 5.5V ~ 60V
- Logic Voltage - VIL, VIH: 0.8V, 2V
- Current - Peak Output (Source, Sink): 1.5A, 1.5A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): -
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 48-VFQFN Exposed Pad
- Supplier Device Package: PG-VQFN-48-78
