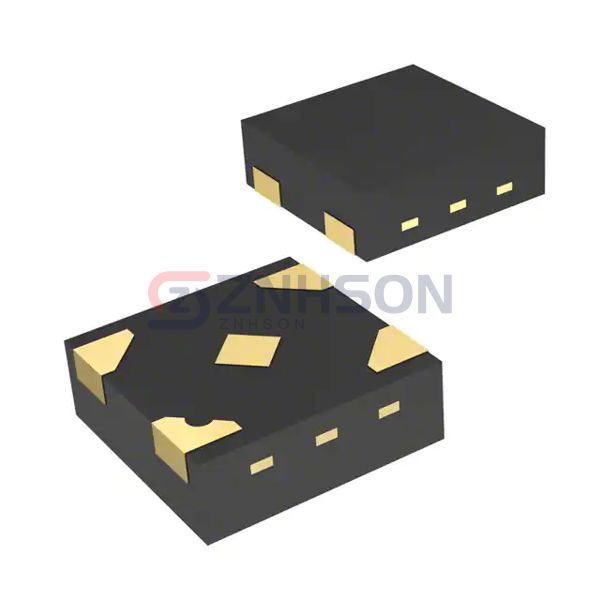

74AUP1G00FS3-7
Diodes Incorporated
Diodes Incorporated
IC GATE NAND 1CH 2-INP DFN0808-4
$0.35
Available to order
Reference Price (USD)
5,000+
$0.10500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 74AUP1G00FS3-7 by Diodes Incorporated sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The 74AUP1G00FS3-7's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 1
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 0.8V ~ 3.6V
- Current - Quiescent (Max): 500 nA
- Current - Output High, Low: 4mA, 4mA
- Logic Level - Low: 0.7V ~ 0.9V
- Logic Level - High: 1.6V ~ 2V
- Max Propagation Delay @ V, Max CL: 6.5ns @ 3.3V, 30pF
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: X2-DFN0808-4
- Package / Case: 4-XFDFN Exposed Pad
