74AXP1G02GMH
NXP USA Inc.
NXP USA Inc.
74AXP1G02 - LOW-POWER 2-INPUT NO
$0.08
Available to order
Reference Price (USD)
5,000+
$0.10075
10,000+
$0.09425
25,000+
$0.08645
50,000+
$0.08320
125,000+
$0.07995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 74AXP1G02GMH by NXP USA Inc. sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The 74AXP1G02GMH's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Active
- Logic Type: NOR Gate
- Number of Circuits: 1
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 0.7V ~ 2.75V
- Current - Quiescent (Max): 600 nA
- Current - Output High, Low: 8mA, 8mA
- Logic Level - Low: 0.7V
- Logic Level - High: 1.6V
- Max Propagation Delay @ V, Max CL: 2.8ns @ 2.5V, 5pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 6-XSON (1.45x1)
- Package / Case: 6-XFDFN
Related Products
Texas Instruments
SN74HC02QPWRQ1
Texas Instruments
SN74ALS32NS
Texas Instruments
JM38510/30003BDA
NXP Semiconductors
74LVC1GU04GV,125
Texas Instruments
CD74HC30PW
Texas Instruments
SN74AHCT04N
Fairchild Semiconductor
DM74S02N
Texas Instruments
SN74AHCT132N
Nexperia USA Inc.

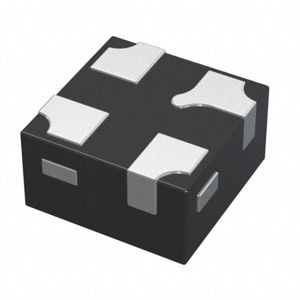

74LVC1G04GX4Z
