74HC02DTR2G
onsemi
onsemi

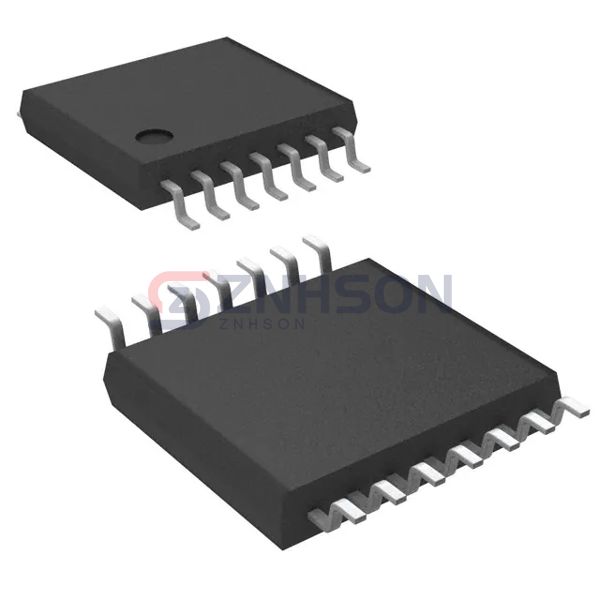

IC GATE NOR 4CH 2-INP 14TSSOP
$0.09
Available to order
Reference Price (USD)
1+
$0.09000
500+
$0.0891
1000+
$0.0882
1500+
$0.0873
2000+
$0.0864
2500+
$0.0855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's 74HC02DTR2G exemplifies innovation in Logic - Gates and Inverters technology. This high-speed CMOS logic IC combines multiple gate functions with exceptional noise margin characteristics. The device's wide operating voltage range (2V to 6V) accommodates diverse design requirements while maintaining consistent performance. Common uses include signal conditioning in medical devices, encoding/decoding circuits in security systems, and interface logic in automotive electronics. The 74HC02DTR2G is particularly valuable in applications requiring precise timing control, such as industrial timers, digital clocks, and microcontroller reset circuits. Its industry-standard package options ensure easy PCB layout and manufacturing compatibility.
Specifications
- Product Status: Obsolete
- Logic Type: NOR Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 5.2mA, 5.2mA
- Logic Level - Low: 0.5V ~ 1.8V
- Logic Level - High: 1.5V ~ 4.2V
- Max Propagation Delay @ V, Max CL: 13ns @ 6V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-TSSOP
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
