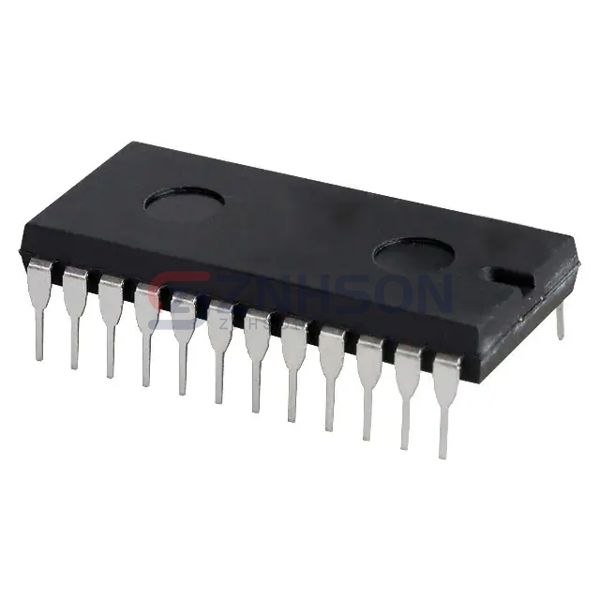

74HC4067N,652
NXP USA Inc.
NXP USA Inc.
IC MUX/DEMUX 1X16 24DIP
$2.94
Available to order
Reference Price (USD)
1+
$2.94000
500+
$2.9106
1000+
$2.8812
1500+
$2.8518
2000+
$2.8224
2500+
$2.793
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with NXP USA Inc.'s 74HC4067N,652, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The 74HC4067N,652 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Obsolete
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 120Ohm
- Channel-to-Channel Matching (ΔRon): 6Ohm
- Voltage - Supply, Single (V+): 2V ~ 10V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 45ns, 45ns
- -3db Bandwidth: 100MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 3.5pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Through Hole
- Package / Case: 24-DIP (0.600", 15.24mm)
- Supplier Device Package: 24-DIP
Related Products
Vishay Siliconix
DG444BDN-T1-E4
Analog Devices Inc./Maxim Integrated
HI3-0508A-5+
Analog Devices Inc./Maxim Integrated
MAX4513ESE
Intersil
ISL43L121IU-T
Analog Devices Inc./Maxim Integrated
MAX382CWN+
Analog Devices Inc.
LTC1393CS#PBF
Analog Devices Inc./Maxim Integrated
DG401AK/883B
Analog Devices Inc./Maxim Integrated

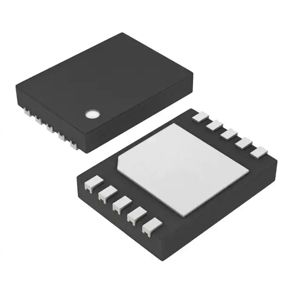

MAX14689AETB+T
