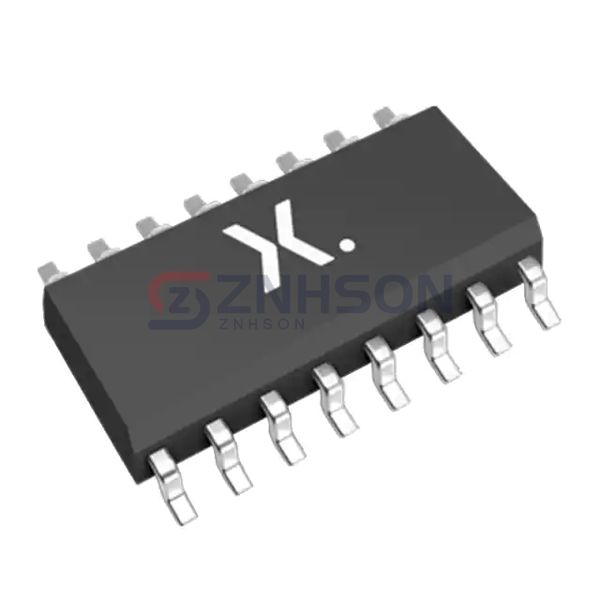

74HC4316D,653
Nexperia USA Inc.
Nexperia USA Inc.
IC SWITCH QUAD 1X1 16SOIC
$0.60
Available to order
Reference Price (USD)
2,500+
$0.17050
5,000+
$0.15950
12,500+
$0.14850
25,000+
$0.14080
62,500+
$0.13750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Nexperia USA Inc.'s 74HC4316D,653, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The 74HC4316D,653 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 135Ohm
- Channel-to-Channel Matching (ΔRon): 6Ohm
- Voltage - Supply, Single (V+): 2V ~ 10V
- Voltage - Supply, Dual (V±): ±1V ~ 5V
- Switch Time (Ton, Toff) (Max): 16ns, 16ns
- -3db Bandwidth: 160MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 3.5pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -60dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SO
