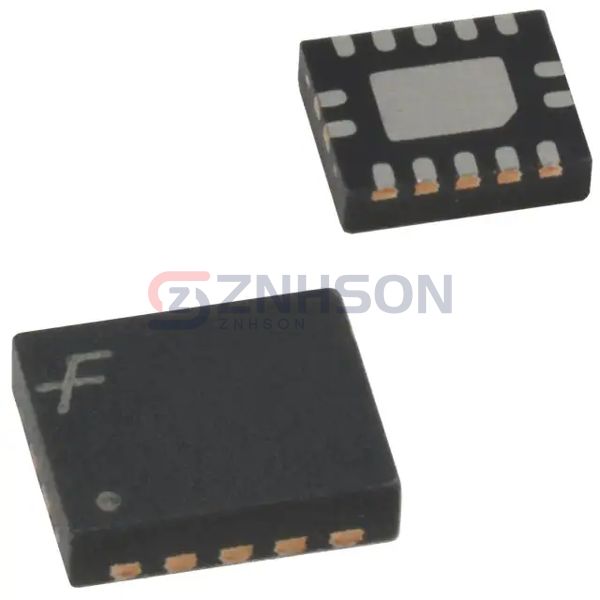

74LCX14BQX
onsemi
onsemi
IC INV SCHMITT 6CH 1-IN 14DQFN
$1.06
Available to order
Reference Price (USD)
3,000+
$0.24926
6,000+
$0.23207
15,000+
$0.22347
30,000+
$0.21488
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your digital designs with onsemi's 74LCX14BQX, a premium Logic - Gates and Inverters solution. This IC features ultra-low power consumption (typical ICC < 1 A) without sacrificing speed, making it ideal for battery-powered devices. The robust design includes overvoltage tolerance on inputs and power-off protection. Application areas include sensor interfaces, motor control systems, and wireless communication modules. Specific implementations might involve smart meter designs, HVAC control boards, or automotive infotainment systems. With onsemi's reputation for quality, the 74LCX14BQX ensures reliable operation across commercial, industrial, and military temperature ranges.
Specifications
- Product Status: Active
- Logic Type: Inverter
- Number of Circuits: 6
- Number of Inputs: 1
- Features: Schmitt Trigger
- Voltage - Supply: 2V ~ 3.6V
- Current - Quiescent (Max): 10 µA
- Current - Output High, Low: 24mA, 24mA
- Logic Level - Low: 0.4V ~ 0.6V
- Logic Level - High: 1.7V ~ 2.2V
- Max Propagation Delay @ V, Max CL: 6.5ns @ 3.3V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-DQFN (3x2.5)
- Package / Case: 14-VFQFN Exposed Pad
