74LV14ABZZ
Nexperia USA Inc.
Nexperia USA Inc.

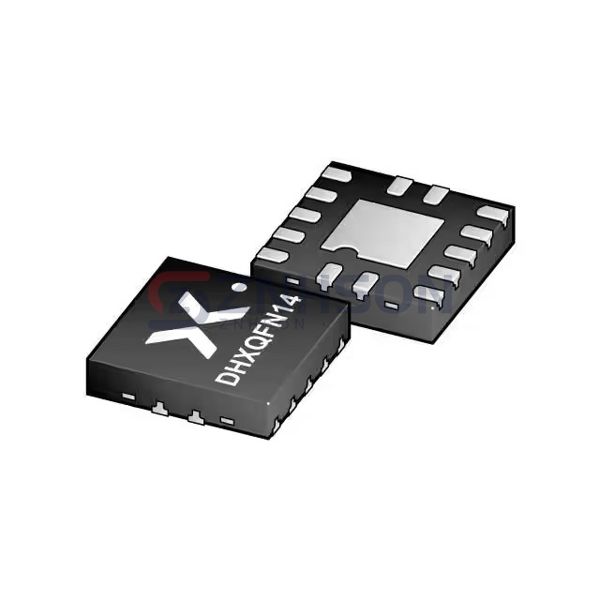

74LV14ABZ/SOT8014/DHXQFN14
$0.59
Available to order
Reference Price (USD)
1+
$0.59000
500+
$0.5841
1000+
$0.5782
1500+
$0.5723
2000+
$0.5664
2500+
$0.5605
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your digital systems with Nexperia USA Inc.'s 74LV14ABZZ, a sophisticated Logic - Gates and Inverters solution. This IC features proprietary noise reduction technology that maintains signal integrity in electrically noisy environments. The device's symmetrical output impedance minimizes transmission line reflections in high-speed applications. Typical implementations include interface logic for ADCs/DACs, clock distribution networks, and system control logic. The 74LV14ABZZ is particularly effective in automotive CAN bus systems, industrial Ethernet switches, and aerospace avionics. With its extended product lifecycle guarantee, this component provides long-term supply security for critical applications.
Specifications
- Product Status: Active
- Logic Type: Inverter
- Number of Circuits: 6
- Number of Inputs: 1
- Features: Schmitt Trigger
- Voltage - Supply: 2V ~ 5.5V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 12mA, 12mA
- Logic Level - Low: 0.75V ~ 1.5V
- Logic Level - High: 1.75V ~ 3.5V
- Max Propagation Delay @ V, Max CL: 10.6ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-DHXQFN (2x2)
- Package / Case: 14-XFQFN Exposed Pad
