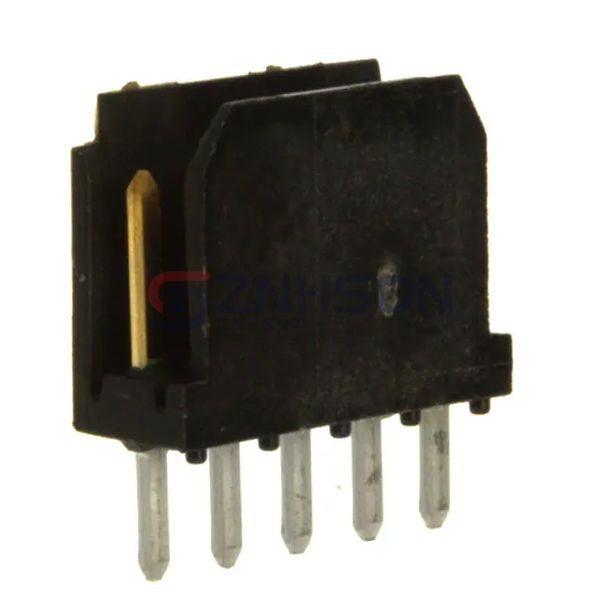

76384-305LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 5POS 2.54MM
$0.88
Available to order
Reference Price (USD)
1+
$0.80000
10+
$0.74900
100+
$0.57410
500+
$0.49920
1,000+
$0.41184
5,000+
$0.36192
10,000+
$0.33696
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 76384-305LF by Amphenol ICC (FCI) is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 76384-305LF supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Amphenol ICC (FCI) ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.197" (5.00mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: 0.411" (10.44mm)
- Insulation Height: 0.368" (9.35mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
