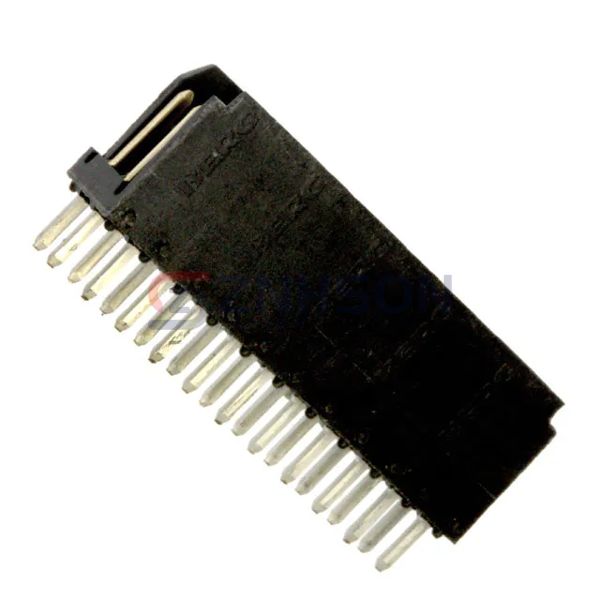

76385-311LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 22POS 2.54MM
$2.81
Available to order
Reference Price (USD)
1+
$2.49000
19+
$2.26263
114+
$1.93956
513+
$1.61630
1,007+
$1.38540
5,016+
$1.22839
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 76385-311LF from Amphenol ICC (FCI) is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 76385-311LF offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Amphenol ICC (FCI) for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.197" (5.00mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: 0.411" (10.44mm)
- Insulation Height: 0.368" (9.35mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTE-115-01-G-DH
Preci-Dip
351-80-122-00-005101
Sullins Connector Solutions
PBC35SABN
Samtec Inc.

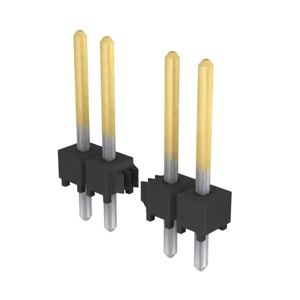

TSW-111-14-T-D
Molex
0015916207
Samtec Inc.
TMM-109-01-T-S-SM-P
Samtec Inc.
FTS-113-01-FM-DV-P
JST Sales America Inc.

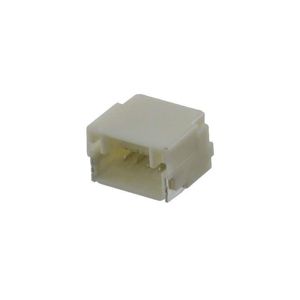

SM05B-NSHSS-TB(LF)(SN)
