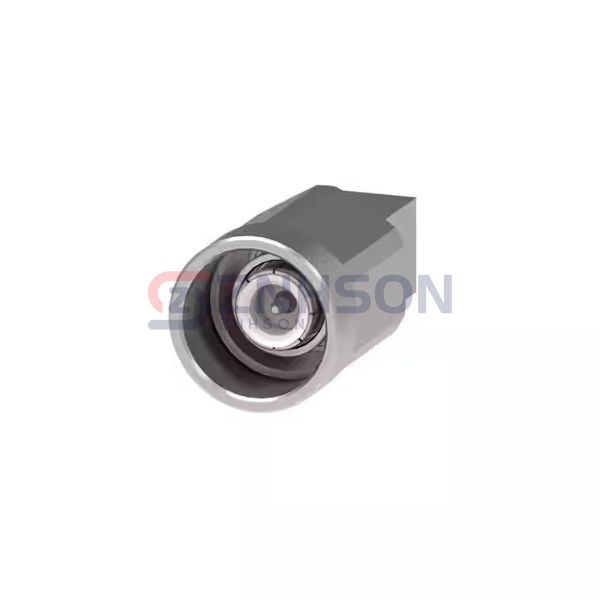

7702.NEX.1120.075
IMS Connector Systems
IMS Connector Systems
NEX10 THREADED PLUG RIGHT ANGLE
$11.77
Available to order
Reference Price (USD)
1+
$11.77000
500+
$11.6523
1000+
$11.5346
1500+
$11.4169
2000+
$11.2992
2500+
$11.1815
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 7702.NEX.1120.075 from IMS Connector Systems is a high-performance RF coaxial connector designed for reliable signal transmission in demanding applications. As part of our premium Coaxial Connectors (RF) collection, this component features excellent impedance matching and low signal loss characteristics. These connectors boast superior shielding against EMI/RFI interference, ensuring clean signal transfer even in electrically noisy environments. The durable construction with gold-plated contacts provides long-term reliability with minimal insertion loss. Common applications include telecommunications infrastructure (5G base stations, microwave links), aerospace avionics systems, medical imaging equipment (MRI machines), and test & measurement instruments. The 7702.NEX.1120.075 is particularly suitable for high-frequency applications up to 18GHz, making it ideal for satellite communications and radar systems.
Specifications
- Product Status: Active
- Connector Style: NEX10
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line), Right Angle
- Mounting Feature: -
- Cable Group: RG-402 (.141" Semi Rigid)
- Fastening Type: Snap-On
- Frequency - Max: 20 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: IP68 - Dust Tight, Waterproof
- Center Contact Material: Beryllium Copper
Related Products
Amphenol RF
82-97-RFX
Amphenol Times Microwave Systems
EZ-300-NF-BH-X
ElectronicMaster
EM731082A
Amphenol RF
182115
Cinch Connectivity Solutions Trompeter
BJ74-47
RF Industries

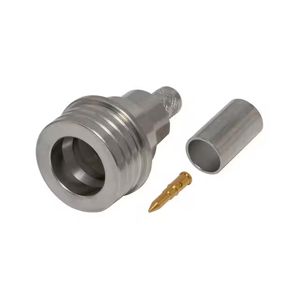

RQN-1300-X
Amphenol RF

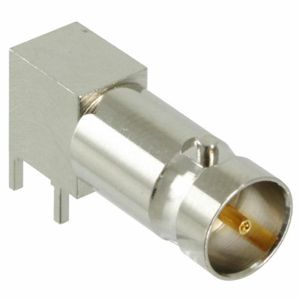

031-70265
Cinch Connectivity Solutions Trompeter

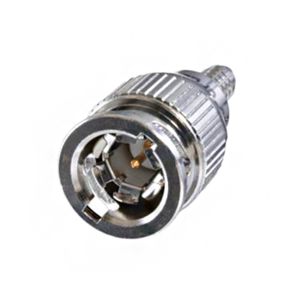

UPL250-004
Cinch Connectivity Solutions Johnson

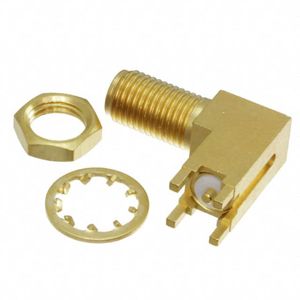

142-0711-521
