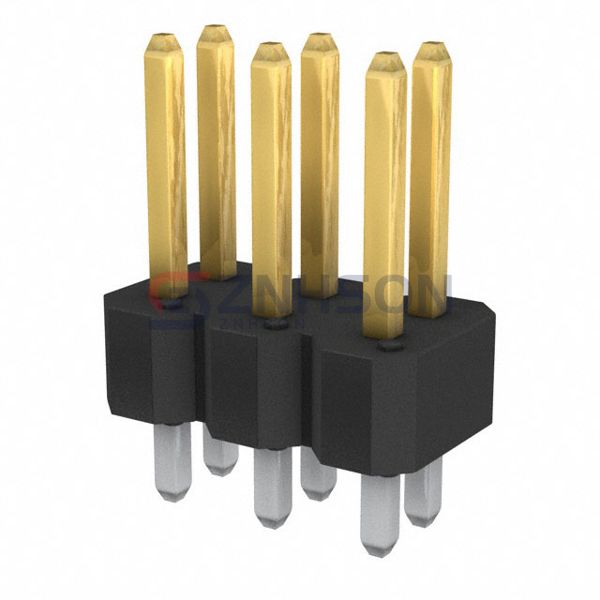

77313-801-06LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 6POS 2.54MM
$0.46
Available to order
Reference Price (USD)
1+
$0.40000
10+
$0.37500
100+
$0.26260
500+
$0.22512
1,000+
$0.18760
5,000+
$0.16080
10,000+
$0.15008
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 77313-801-06LF male pin header by Amphenol ICC (FCI) provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Amphenol ICC (FCI) guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.095" (2.41mm)
- Overall Contact Length: 0.425" (10.80mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 130°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
