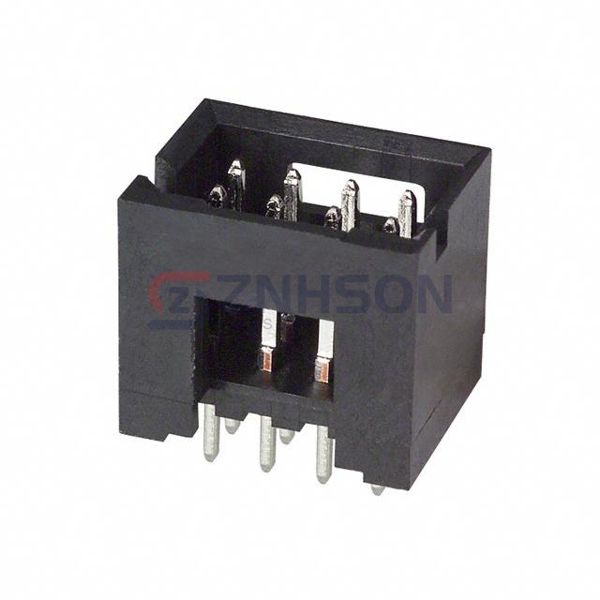

8-87589-5
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 8POS 2.54MM
$1.99
Available to order
Reference Price (USD)
1+
$1.46000
10+
$1.32800
368+
$1.03019
736+
$0.94885
1,104+
$0.81330
5,152+
$0.72113
10,304+
$0.70486
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 8-87589-5 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.533" (13.55mm)
- Insulation Height: 0.440" (11.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Würth Elektronik
61202422821
Samtec Inc.
FTSH-117-01-L-DV-A-P
Samtec Inc.
TMM-103-02-G-D
Sullins Connector Solutions
PBC16DBEN
Mill-Max Manufacturing Corp.
850-90-034-20-001000
Harwin Inc.
M50-3610542
TE Connectivity AMP Connectors
1-826632-5
Preci-Dip
802-10-062-66-001101
Samtec Inc.

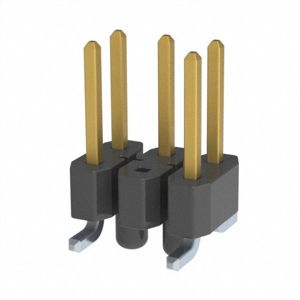

TSM-103-01-SM-DV-A-003-P-TR
