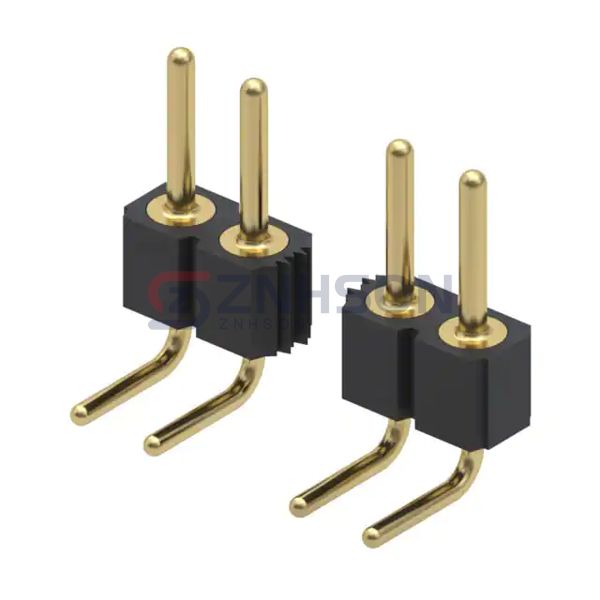

800-10-020-20-001000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN HEADER R/A 20POS 2.54MM
$16.43
Available to order
Reference Price (USD)
50+
$14.09140
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 800-10-020-20-001000 by Mill-Max Manufacturing Corp. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 800-10-020-20-001000 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Mill-Max Manufacturing Corp. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.195" (4.95mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
6-146288-2
Samtec Inc.
TSM-105-02-S-DV-006-P-TR
Sullins Connector Solutions
NRPN222MAMP-RC
Preci-Dip
850-10-006-10-001101
Preci-Dip
499-V3-238-10-009101
Samtec Inc.
FTSH-110-04-F-D-RA
Sullins Connector Solutions
PRPC028DFBN-RC

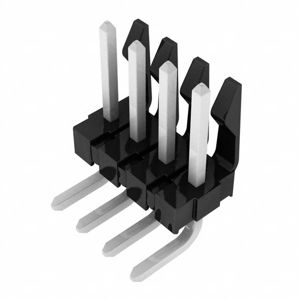

Molex
